Different types of TMT Bars

Products

Fe-500⁺

Yield stress : 510 min | Tensile Strength : 590 | Elongation : 16 min

Fe-500⁺ D

Yield stress : 520 min | Tensile Strength : 600 | Elongation : 18 min

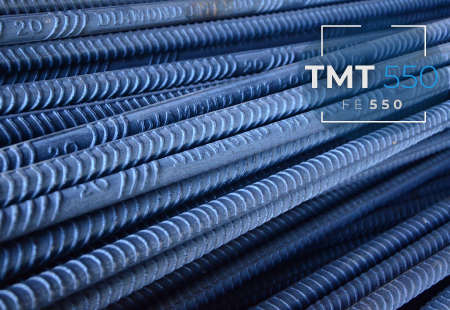

Fe-550⁺

Yield stress : 560 min | Tensile Strength : 640 | Elongation : 14 min

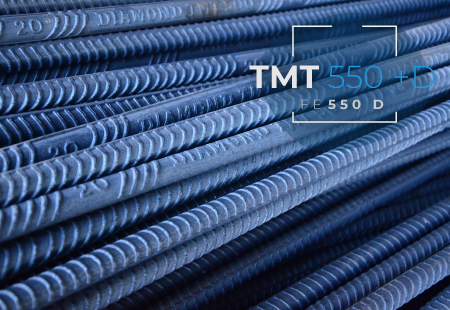

Fe-550⁺ D

Yield stress : 510 min | Tensile Strength : 590 | Elongation : 16 min

Characteristics

Chemical Properties

#	Chemistry (%)(max)	DIAMOND TMT Fe-500⁺	DIAMOND TMT 500 ⁺ D Fe-500⁺D	DIAMOND TMT 550⁺ Fe-550⁺	DIAMOND TMT 550 ⁺ D Fe550⁺D
1	Carbon	0.250	0.250	0.250	0.280
2	Sulphur	0.045	0.035	0.040	0.055
3	Phosphoros	0.045	0.035	0.040	0.055
3	S & P	0.090	0.070	0.080	0.110

*Lower Sulphur and Phosphoros Properties compared to the IS 1786 Standard reveal our product is more durable than the Standards Specified

Mechanical Properties

#	Mechanical (N/mm2)(max)	DIAMOND TMT 500⁺ Fe-500⁺	DIAMOND TMT 500 ⁺ D Fe-500⁺D	DIAMOND TMT 550⁺ Fe-550⁺	DIAMOND TMT 550 ⁺ D Fe550⁺D
1	Yield stress	510 min	520 min	560 min	450 min
2	Tensile strength	590	600	640	520
3	Elongation	16 min	18 min	14 min	18 min

*High Elongation and tendile strength are directly proportional with high yield strss.

Negative Tolerance Statistics

#	Size	Diamond TMT Bar Avg. Wt. of Gram/Mtr	Diamond TMT Bar Savings
1	8	367-377	7%
2	10	572-584	7%
3	12	844-854	5%
4	16	1501-1516	5%
5	20	2396-2420	3%
6	25	3735-3772	3%
7	28	468-4733	3%
8	32	6121-6182	3%
9	36	7751-7828	3%
10	40	9555-9650	3%

Product Range :Various Size and Grades. Diamond TMT Bars are available in sizes ranging from 8mm to 40mm in grades fe-500, fe-500D, fe-550 & fe550D.
